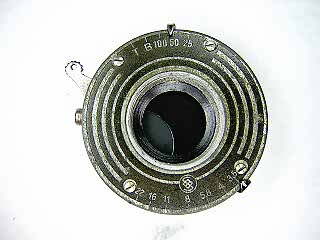

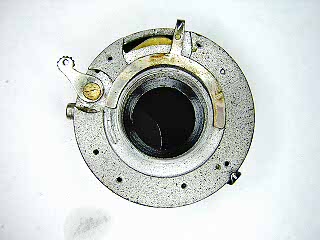

This shutter is from an early Reflecta. It is a very simple shutter that relies on
varying the spring tension to change speeds. The mainspring on this shutter is worn out
and all speeds are about the same.
 |
Remove the four screws in the cover and lift the cover off.
|
 |
Remove the speed setting lever but don't remove the screw in the trigger.
|
 |

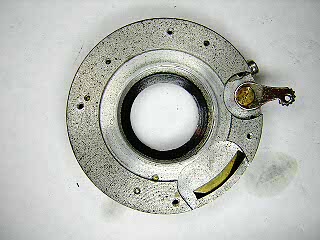

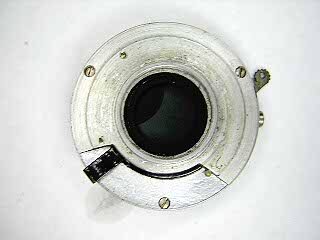

Turn the shutter over and remove the three screws in the back. Pull the two halves
of the shutter apart.
|
 |

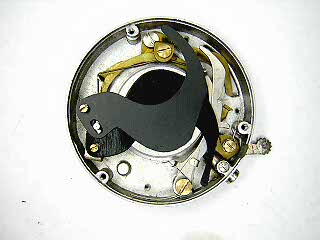

Remove the shutter blades. These are made of paper.
|
 |

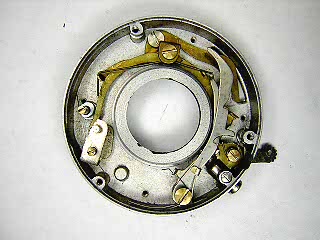

Note the position of the springs on the T and B levers. Remove the screw and lift the levers off.
|
 |

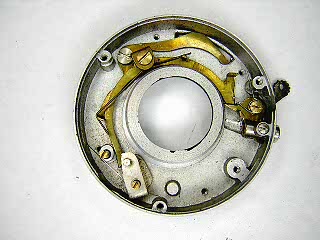

Remove the cable release tube and the screw in the shutter trigger.
|
 |
Turn the shutter over and remove the screw from the trigger lever. Pry the lever off.
Turn the shutter over again and remove the trigger.
|
 |

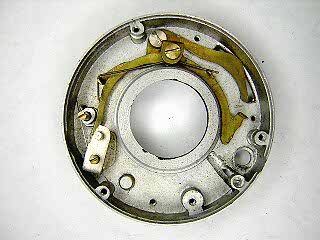

Unhook the main spring and then remove the main activating lever and spring.
|
 |

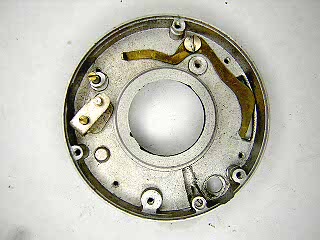

Remove the speed setting lever.
|
 |

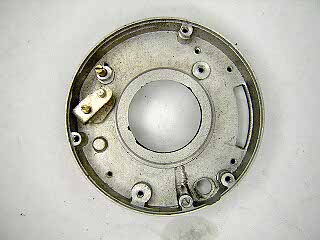

Remove the blade activating lever.
|
