Ilex Universal Shutter

A simple retard escapement shutter used on low-end American made cameras. This shutter is similar to the Ilex Precise used on early Argus cameras.

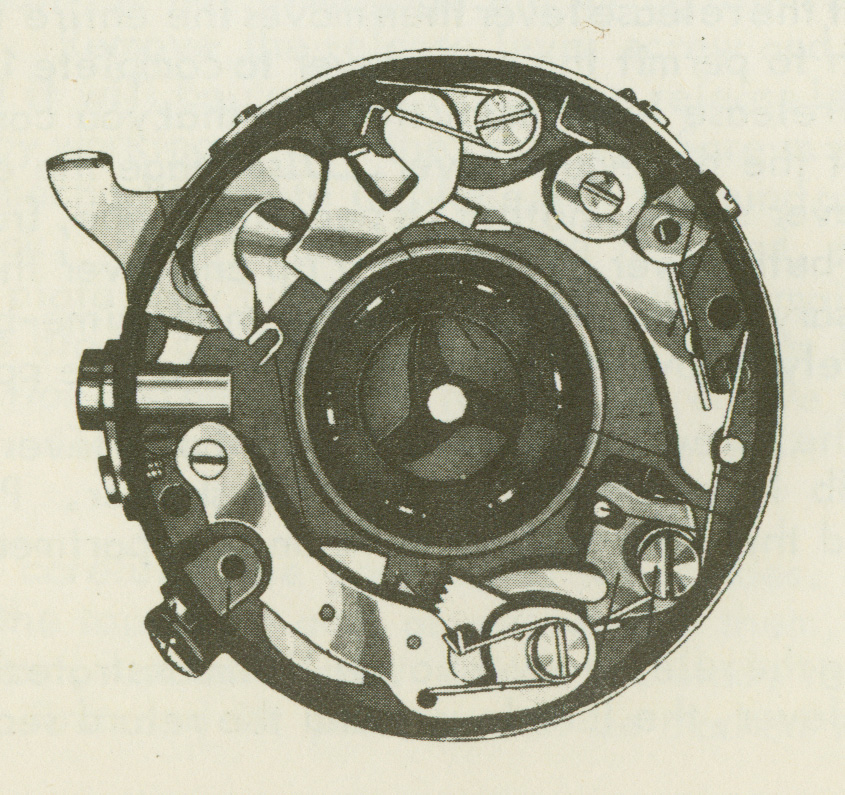

This is a scan of a drawing from the National Camera Repair School instruction book.
